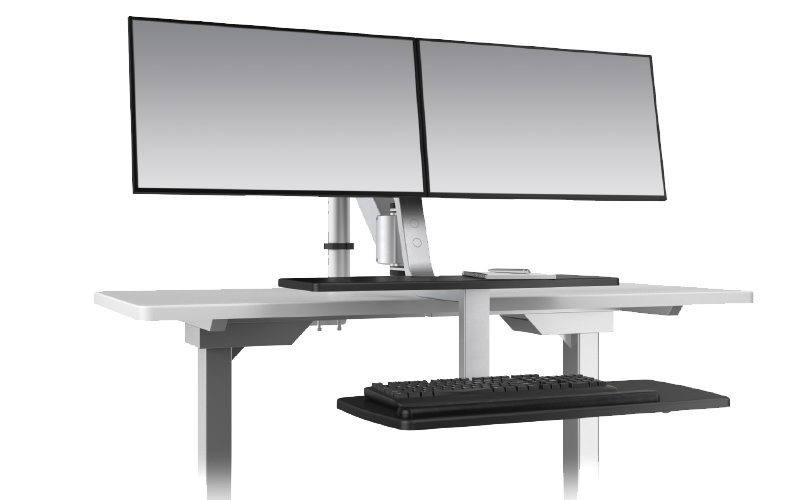

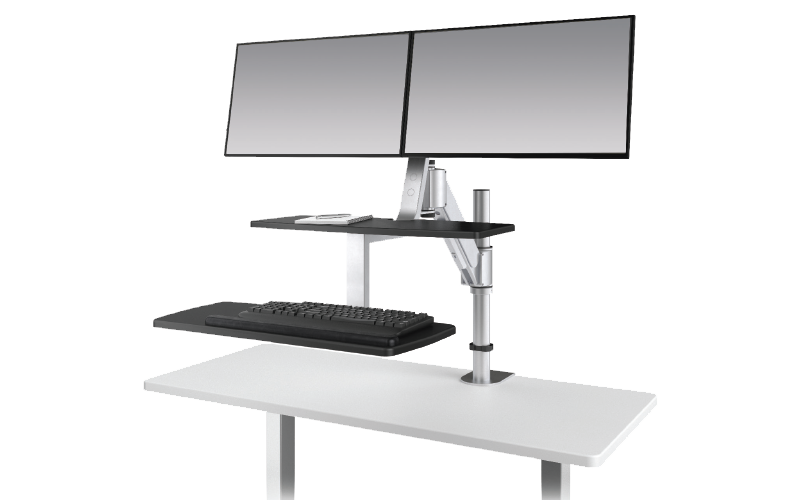

Dual monitor arm desktop sit-to-stand workstation
360° INTERACTIVE VIEW
Model #
List Price
CLIMB2-SLV
$1,101.00
Accessories
LTH-Edge
Tech Specs
Resources & Downloads
Related
Accessories
Pneumatic height adjustment
Clamp mount to worksurface
(6.0" clearance needed underneath worksurface)
14.5" pole height adjustment range
16.2" motion arm height range
Flexible positioning along the vertical column and horizontally on with the articulating arm
17.2" column height adjustment range
25 lb. platform weight capacity
27.0"w x 10.3"d top platform
27.0"w x 10.6"d keyboard platform
30.0" max. worksurface depth
Top platform includes grommet hole for cable management
Keyboard platform includes palm rest
Palm rest can be positioned on left or right side of keyboard platform
Partial assembly required
Dual monitor arm integration:
10.4" monitor mount height range
13.8" motion arm height range
20 lb. max. monitor weight
(combined weight of both monitors)
21.8" max. monitor width -
Bezel measured left to right. Max. width is contingent on weight capacity.
Monitor can be rotated for portrait or landscape orientation
Conversion grommet mount sold separately
Warranty: 3 yr.
Photos
LIFT_CLIMB_CLIMB2_300_RGB
Cutsheets
CLIMB2
CLIMB2 - list
Videos
THE CLIMB: Now Shipping 90% Pre-Assembled
×
CAD Symbols
3D CAD DWG CLIMB2
2D CAD DWG CLIMB2
Assembly/User Guides
CLIMB-GM Assembly Guide
Climb2 Assembly Guide

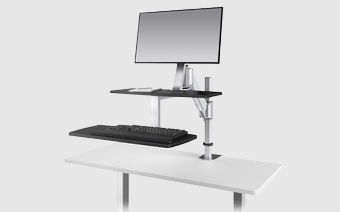

Climb
